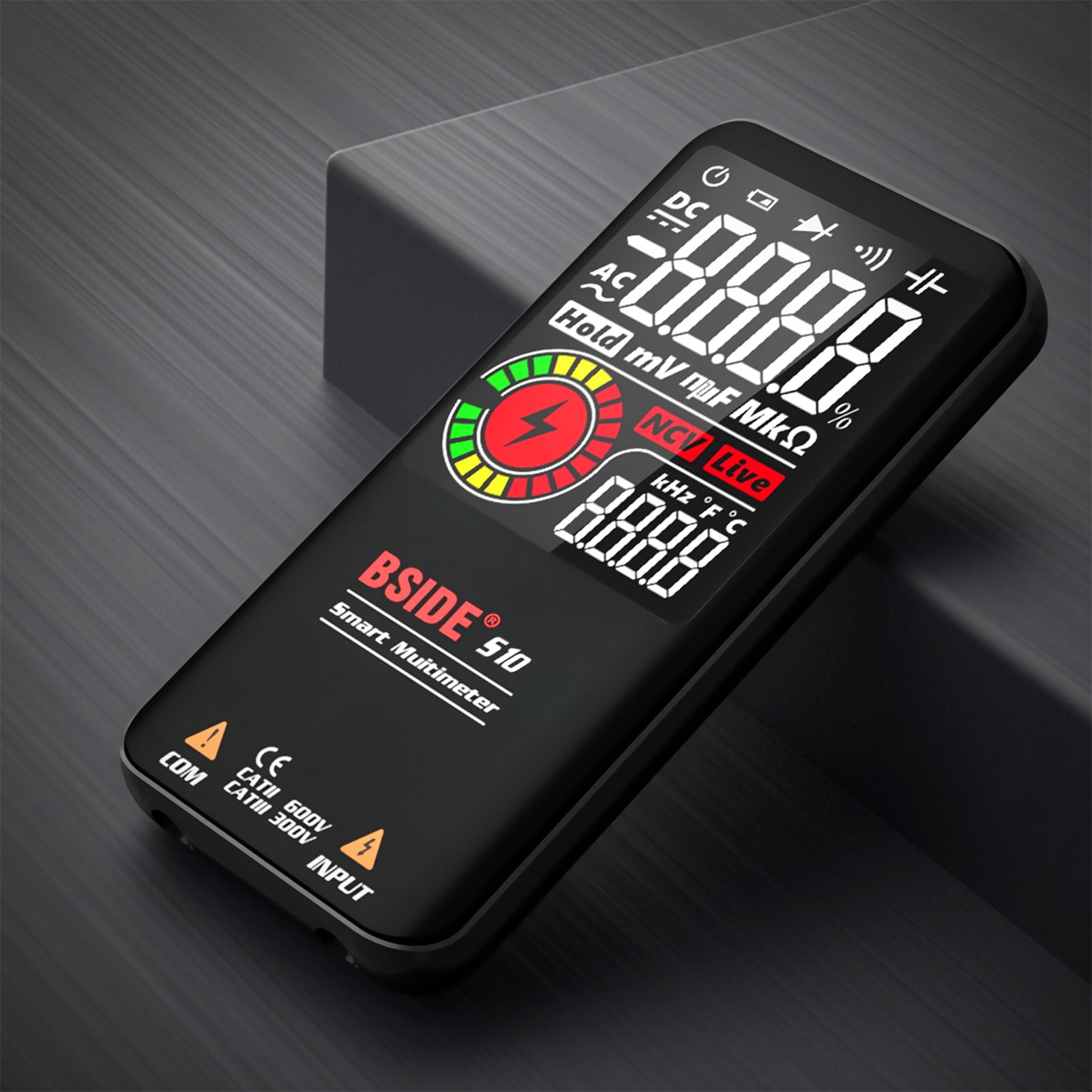

BSIDE S10 Multimeter, Overload Protection, CAT.II 600V CAT.III 300V, AC/ Voltmeter Ohmmeter, Test Resistance Capacitance Frequency, NCV Live Line

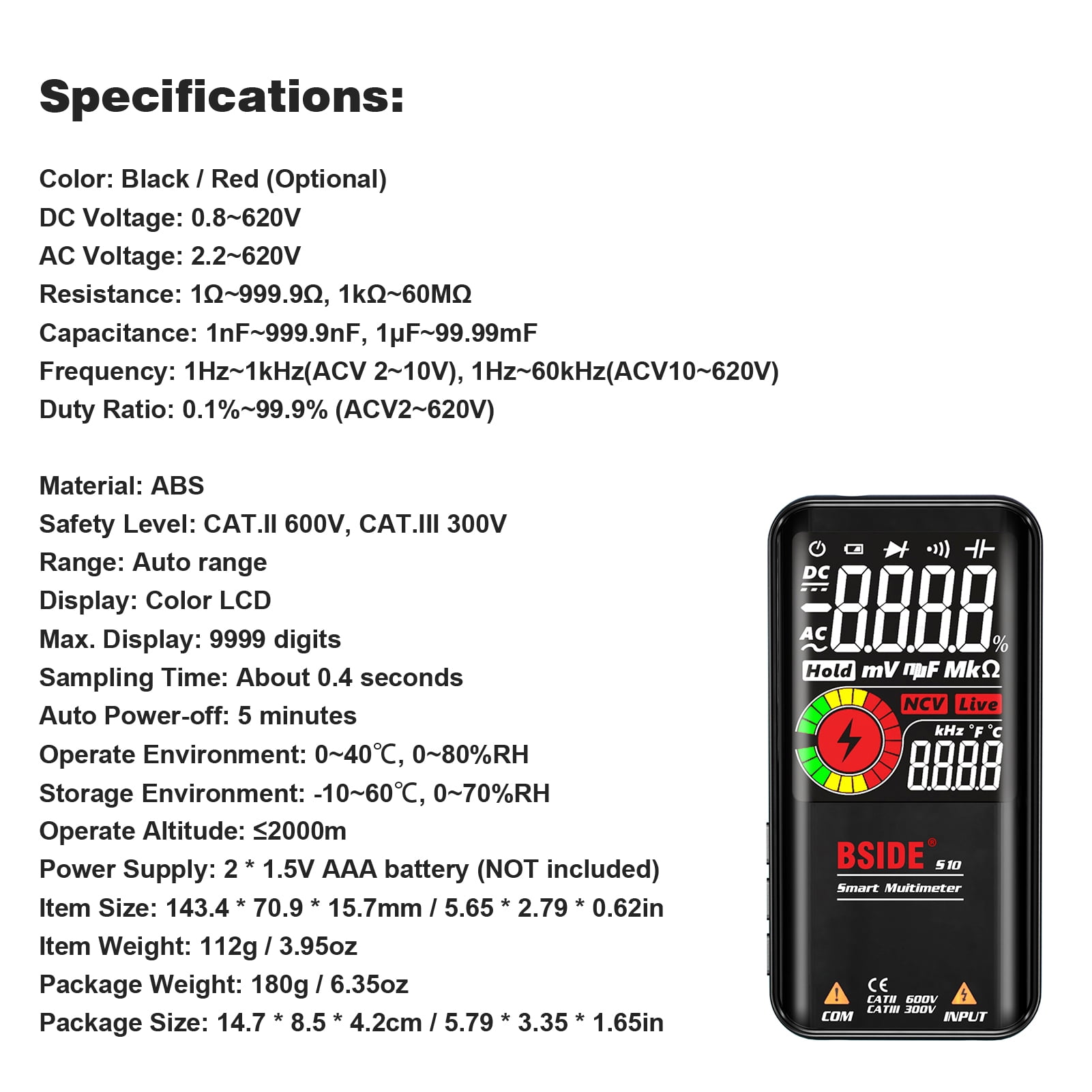

BSIDE S10 Intelligent 9999 Counts Multimeter Digital LCD Display AC/ Voltmeter Ohmmeter Test Resistance Capacitance Frequency Diode Continuity NCV Live Line with Flash Light Data Hold<br> <strong>Features:</strong> <br>Multifunctional Multimeter with Wide Test : digital multimeter can measure AC/ voltage, resistance, capacitance, frequency, diode, continuity, NCV live line. <br>Smart Functions: measuring diodes within 3V. when resistance is less than 50Ω, buzzer will sound when measuring resistance. buzzer sounds when live voltage signal recognized <br>High Precision Display: 3.5-inch large EBTN LCD greatly enhance reading experience, value is very easy to read even under sunlight or poor light condition. <br>Reliable &amp; Practical: NCV measurement, auto ranging 9999 counts smart multimeter with DATA hold function. <br>Safety Assurance: with full measuring overload conservation, double insulation conservation, CAT.II 600V and CAT.III 300V safety level. <br> <br> <strong>Specifications:</strong> <br>Color: Black / Red (Optional) <br> Voltage: 0.8~620V <br>AC Voltage: 2.2~620V <br>Resistance: 1Ω~999.9Ω, 1kΩ~60MΩ <br>Capacitance: 1nF~999.9nF, 1μF~99.99mF <br>Frequency: 1Hz~1kHz(ACV 2~10V), 1Hz~60kHz(ACV10~620V) <br>Duty Ratio: 0.1%~99.9% (ACV2~620V) <br> <br>Material: ABS <br>Safety Level: CAT.II 600V, CAT.III 300V <br>: Auto <br>Display: Color LCD <br>Max. Display: 9999 digits <br>Sampling Time: About 0.4 seconds <br>Auto -off: 5 minutes <br>Operate Environment: 0~40℃, 0~80%RH <br>Storage Environment: -10~60℃, 0~70%RH <br>Operate Altitude: ≤2000m <br> Supply: 2 * 1.5V AAA battery (NOT included) <br>Item Size: 143.4 * 70.9 * 15.7mm / 5.65 * 2.79 * 0.62in <br>Item Weight: 112g / 3.95oz <br>Package Weight: 180g / 6.35oz <br>Package Size: 14.7 * 8.5 * 4.2cm / 5.79 * 3.35 * 1.65in <br> <br> <strong>Packing List:</strong> <br>1 * Multimeter <br>1 * Pair of Test Pen <br>1 * Manual (English)

• Multifunctional Multimeter with Wide Test : digital multimeter can measure AC/ voltage, resistance, capacitance, frequency, diode, continuity, NCV live line.
• Smart Functions: measuring diodes within 3V. when resistance is less than 50Ω, buzzer will sound when measuring resistance. buzzer sounds when live voltage signal recognized
• High Precision Display: 3.5-inch large EBTN LCD greatly enhance reading experience, value is very easy to read even under sunlight or poor light condition.
• Reliable & Practical: NCV measurement, auto ranging 9999 counts smart multimeter with DATA hold function.
• Safety Assurance: with full measuring overload conservation, double insulation conservation, CAT.II 600V and CAT.III 300V safety level.
