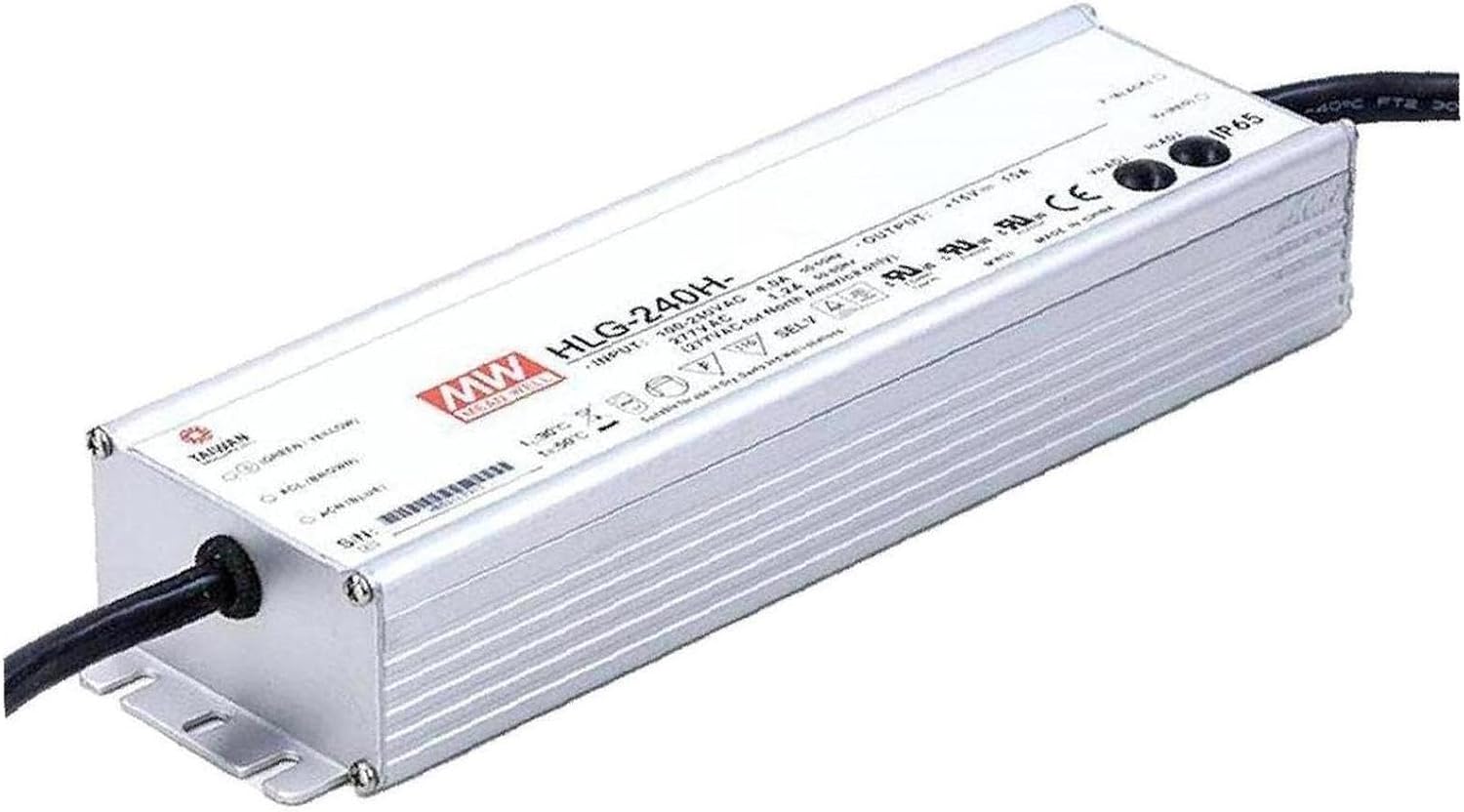

Meanwell HLG-240H-12A 240W 12V 16A IP67 LED Power Supply Driver
Product details
| Management number | 220678370 | Release Date | 2026/05/03 | List Price | US$27.79 | Model Number | 220678370 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
External, switch mode, encapsulated IP67 rated power supplies High efficiency, long life and high reliability Suitable for dry, damp or wet locations indoor or outdoor Suitable for LED lighting and moving sign applications Compliance to worldwide safety regulations for lighting Constant current level adjustable through output cable with 1-10Vdc or 10V PWM signal or resistor Over current protection level can be set via the output cable Short circuit, over load, over voltage and over temperature protection 300mm un-terminated, 3-core 18AWG input lead 300mm un-terminated, 2-core 14AWG output lead 300mm un-terminated, 2-core 18AWG dimming lead EMC compliance to EN 55022 Class B Power factor correction to EN 61000-3-2Note: Power derates above 60°C. MTBF to MIL-HDBK-217F
- Input Voltage: 90 --> 264 V a.c., 127 --> 370 V d.c., Output Voltage: 12V, Operation: Constant Voltage, Output Current: 20 A, Maximum Output Power: 240W, Dimming Operation: PWM, Resistance, 1 to 10 V dc, Input Voltage: AC, DC, Application: LED Lighting, Street Lighting
- Property: 100-240 V
- Voltaggio in uscita: 12 VOLT DC
- Lunghezza in mm: 244
- Larghezza in mm: 68
| Model | HLG-240H-12A |
|---|---|
| Brand Name | MEAN WELL |
| Unit Count | 1 Count |
| Item Weight | 0.01 Ounces |
| Part Number | HLG-240H-12A |
| Manufacturer | Mean Well |
| Power Source | Corded Electric |
| Current Rating | 20 Amps |
| Specification Met | Ip67 |
